Dell S5232F-ON 32x 100G QSFP28 2x 10G SFP+ Managed Switch OS10

Condition : Refurbished – tested and working grade A refurbished part

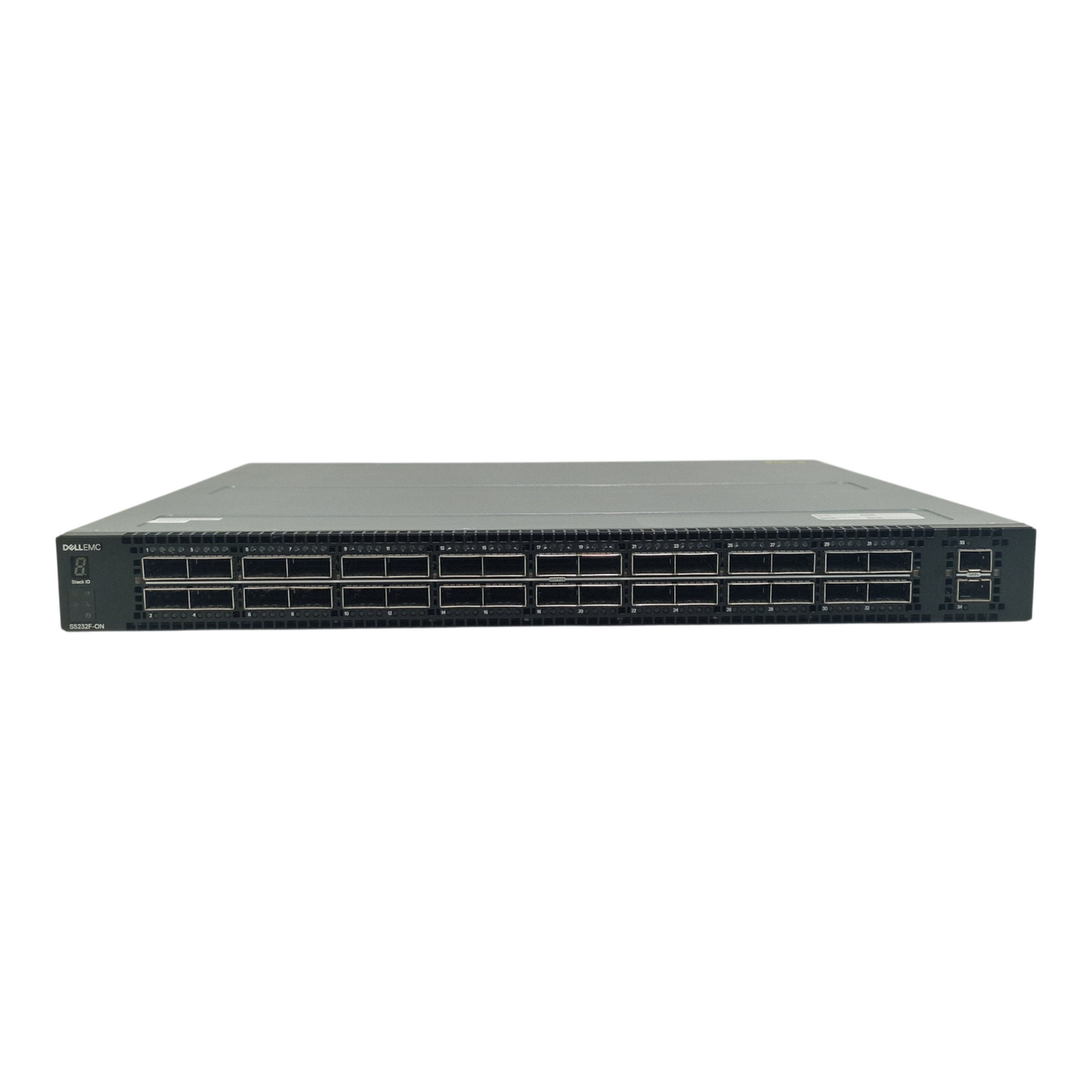

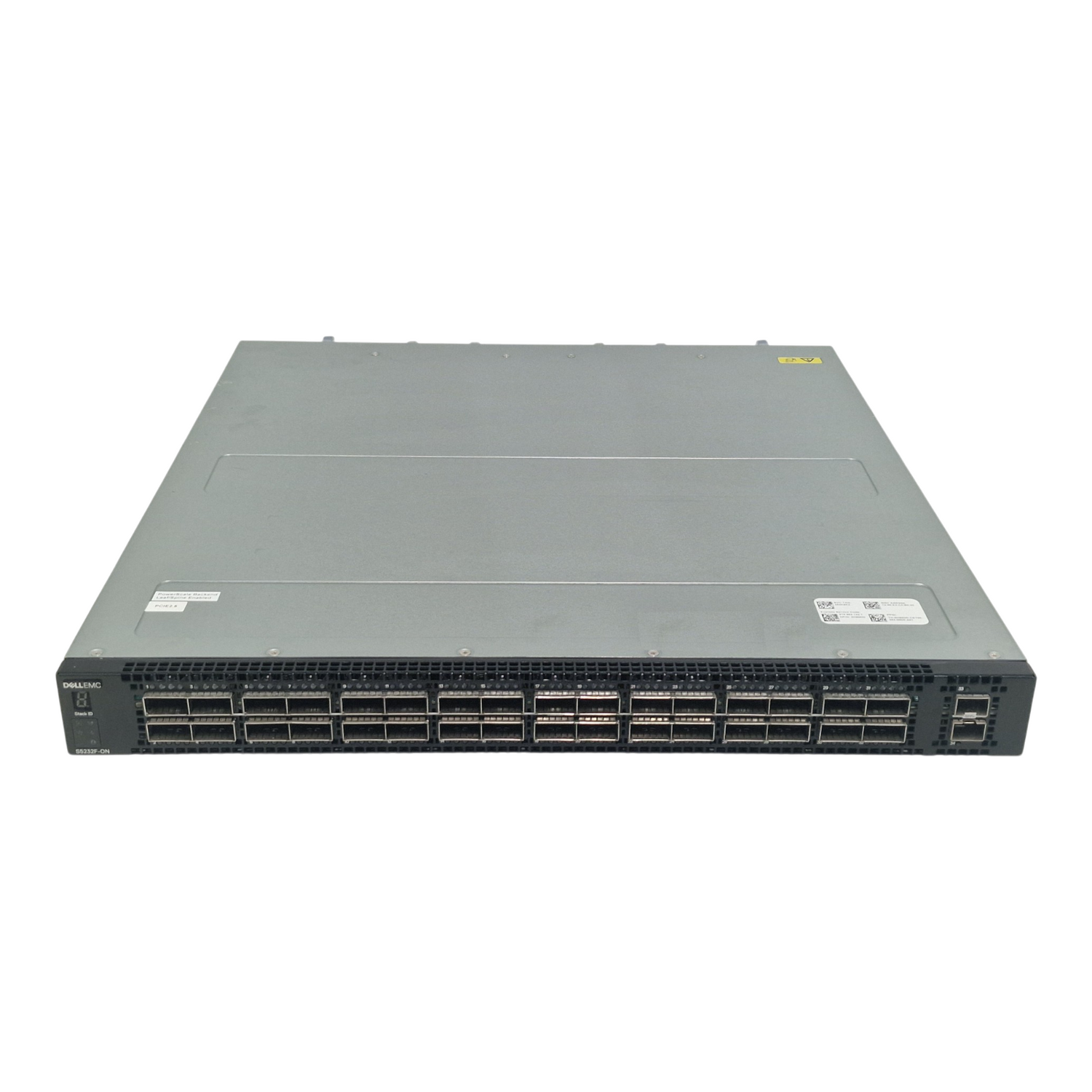

Dell S5232F-ON Managed Data Centre Switch with OS10

Key Specifications:
- 1U rack-mount form factor

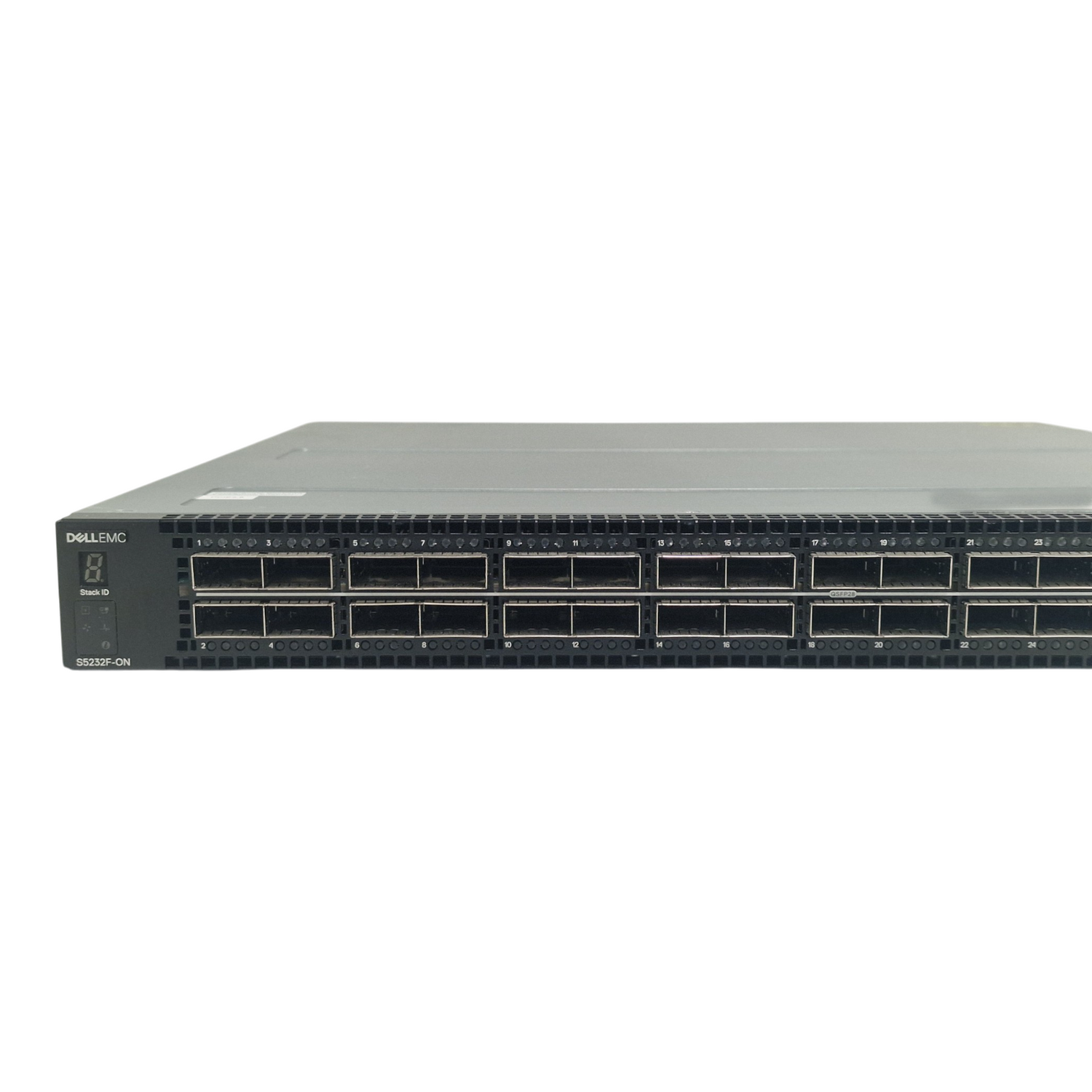

- 32 x 100Gb QSFP28 ports supporting 10/25/40/50/100GbE operation

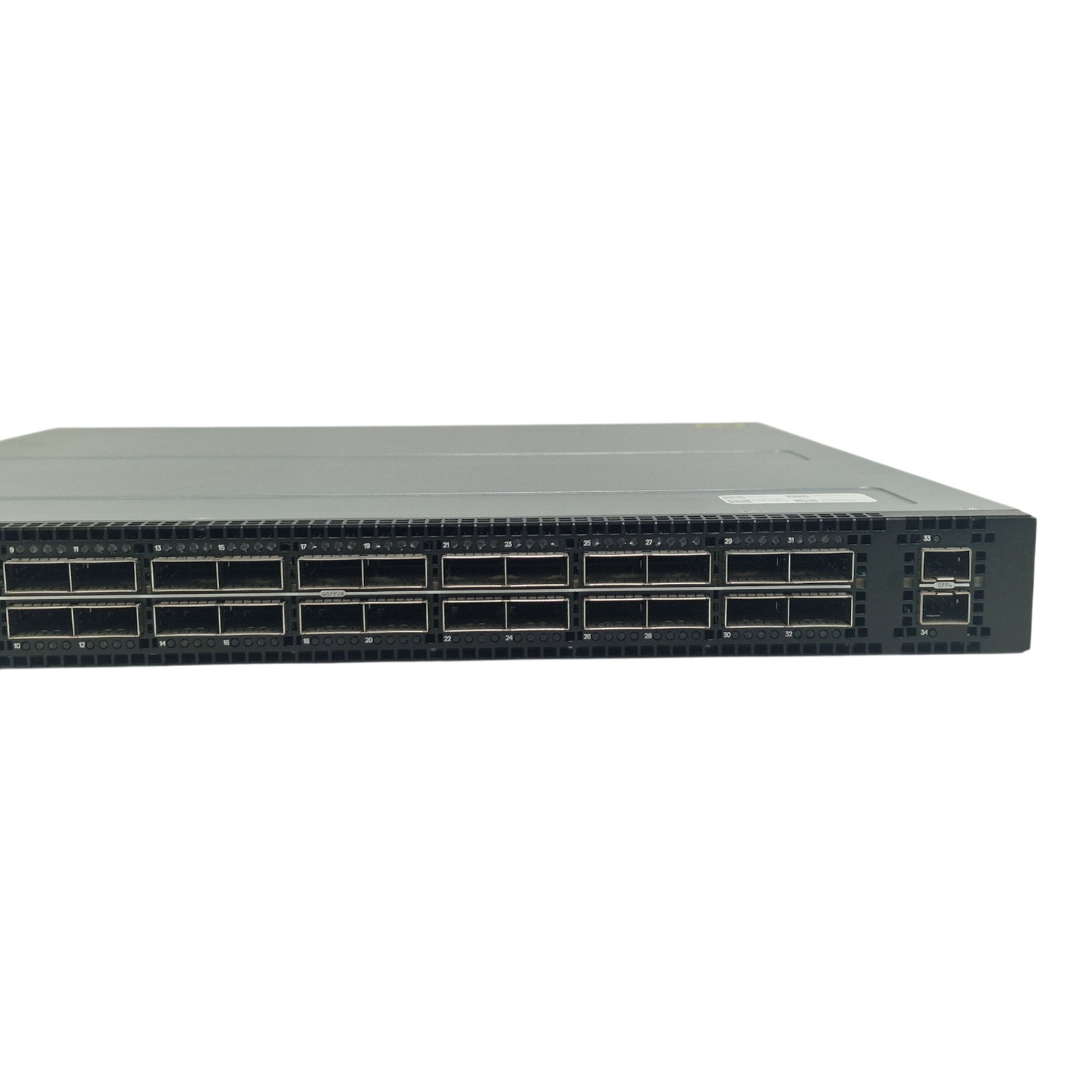

- 2 x 10Gb SFP+ ports
- RJ45 console and out-of-band management ports
- USB management port

Performance:
- Layer 2 and Layer 3 switching capabilities
- Switching capacity of 6.4 Tbps
- Forwarding rate up to 4.8 Bpps
- MAC address table up to 288K entries
- 32 MB packet buffer
- Jumbo frame support

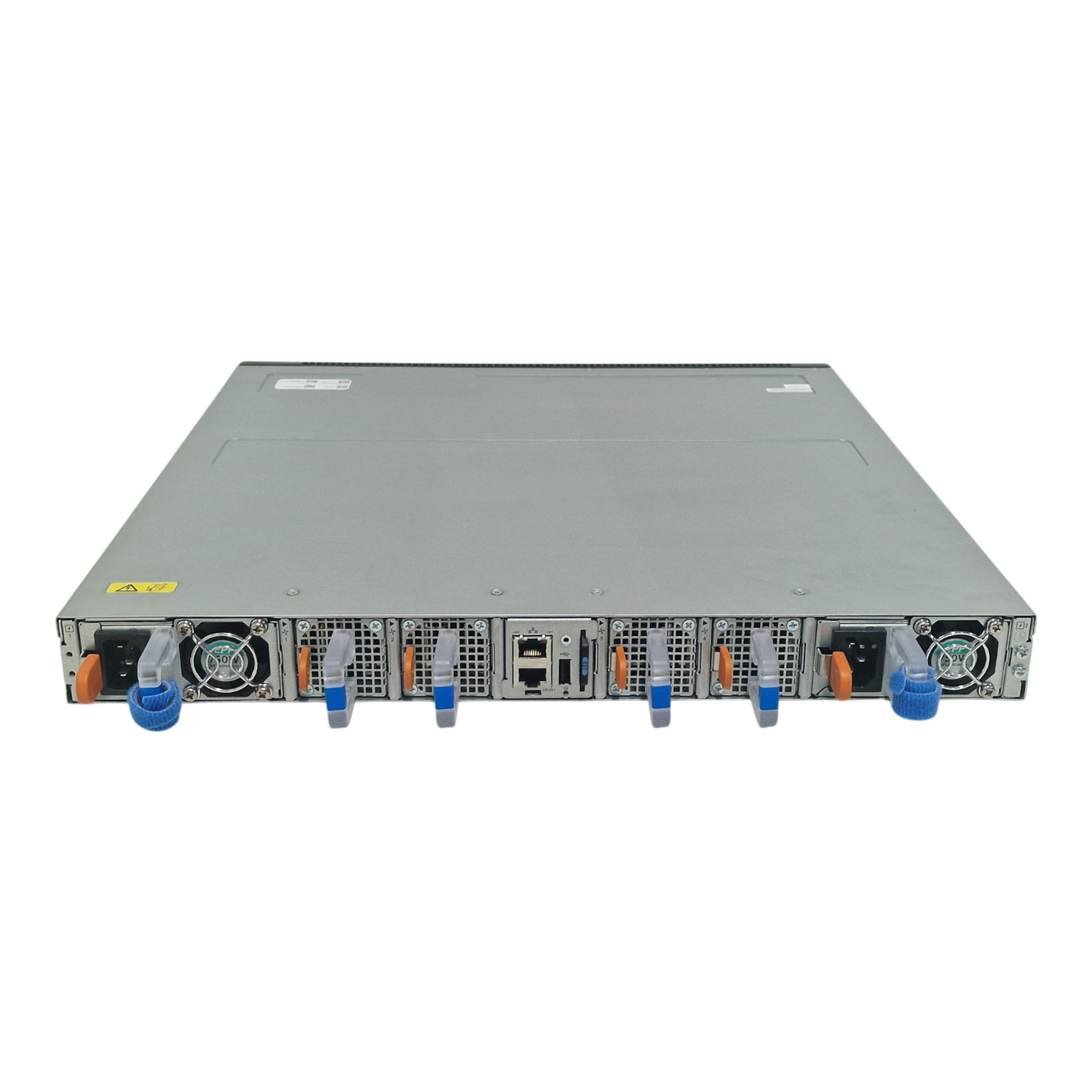

Hardware:
- 16 GB CPU memory
- 64 GB SSD storage

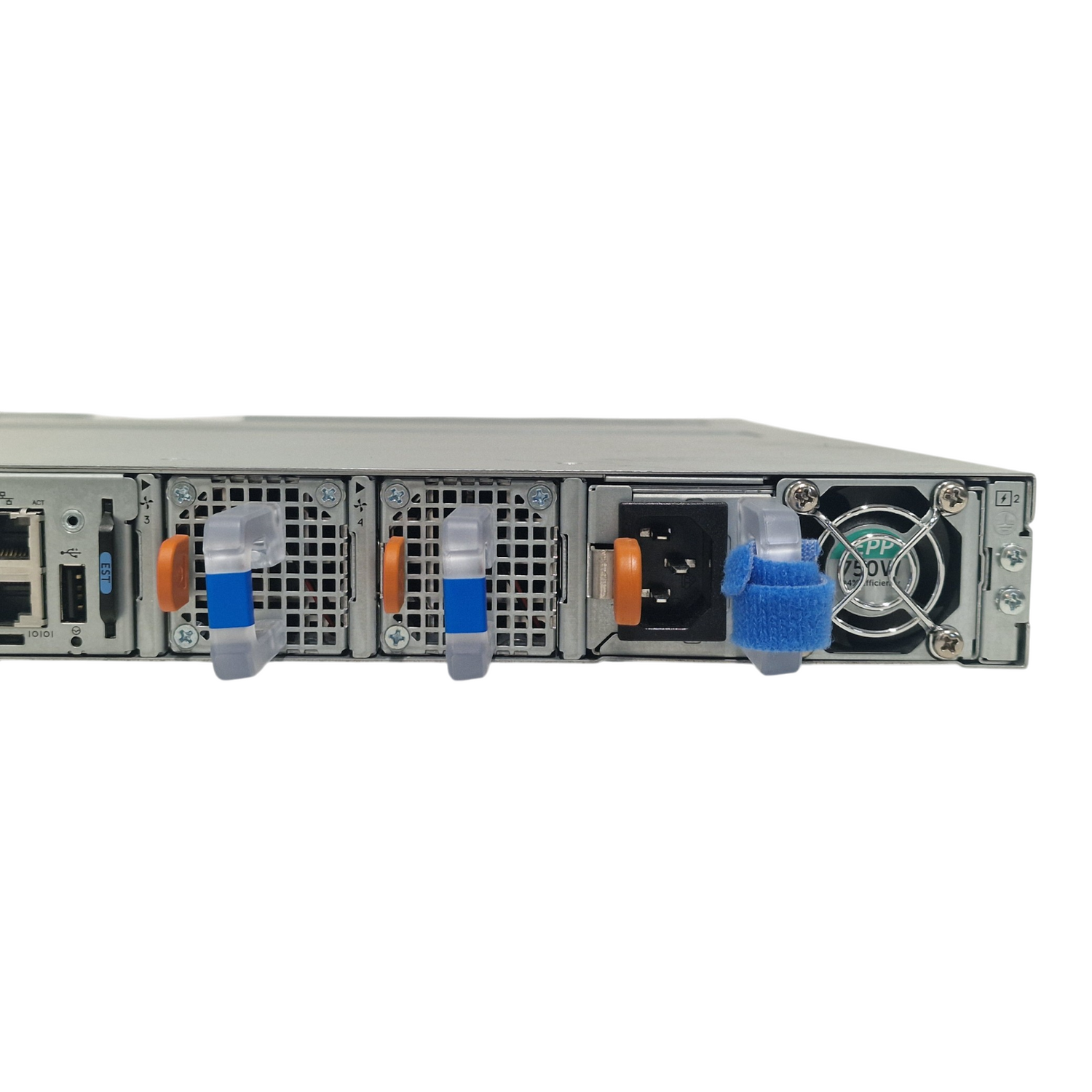

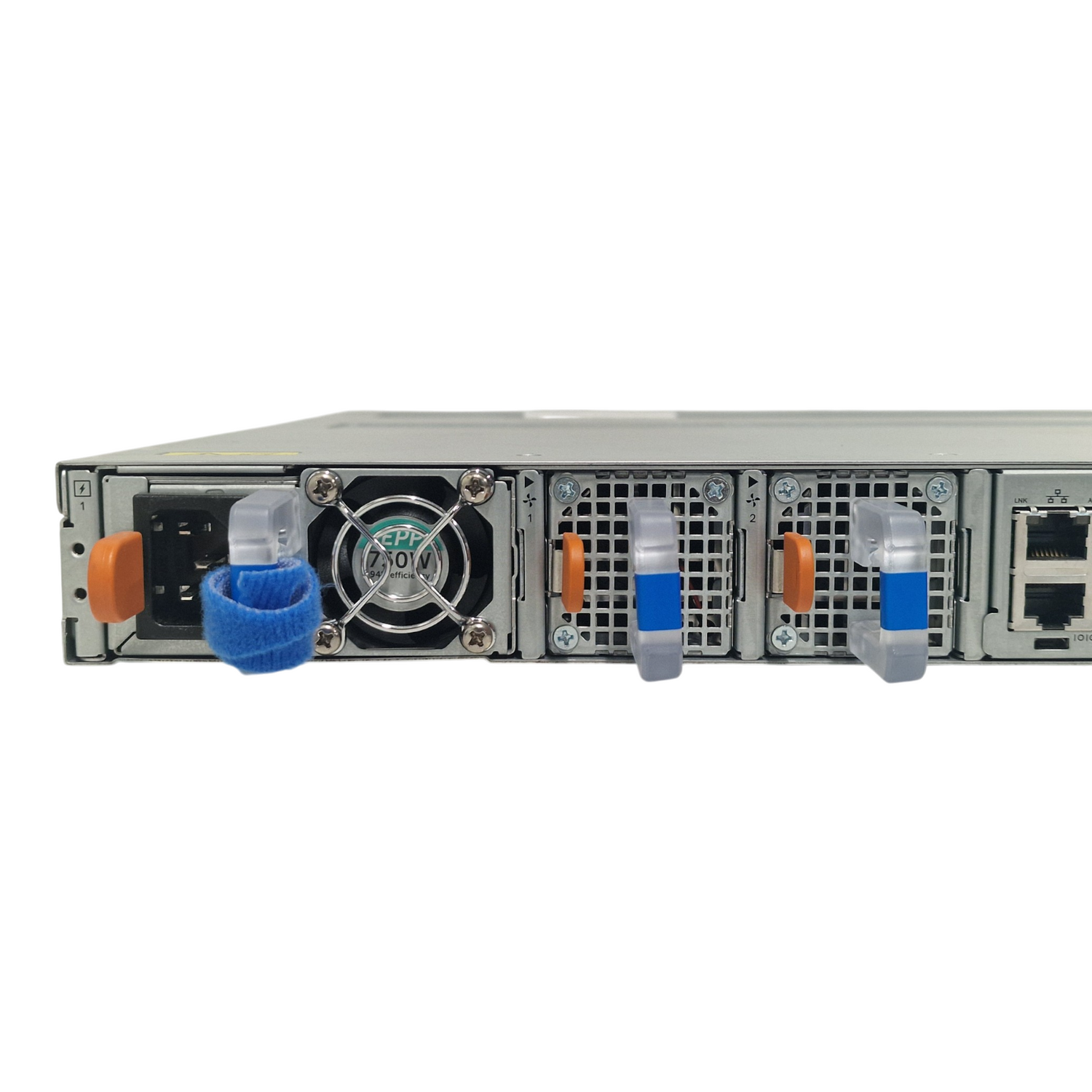

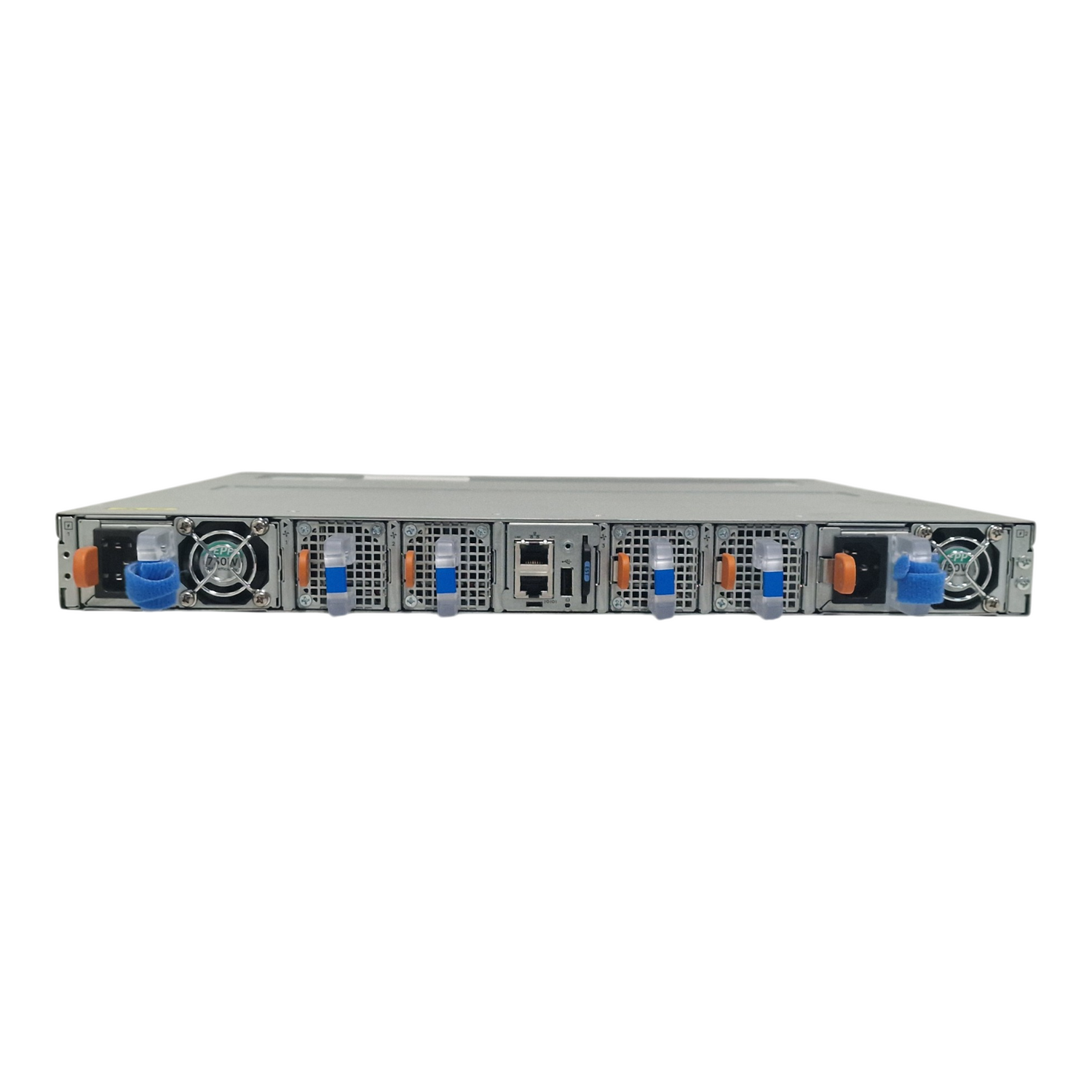

- 2 x hot-swap redundant power supplies
- 4 x hot-swap back-to-front airflow fan modules
- Redundant cooling design

Management:
- CLI, SNMP, REST API support
- Open networking compatible with ONIE boot environment
- Dell SmartFabric OS10 operating system (perpetual licence)

Physical:
- Weight approx. 9.8 kg
- Airflow direction: Back-to-Front

Designed for high-density, high-performance data centre networking with advanced features and scalability.
