Viewcast Osprey 230 Analogue Video Capture Card 94-00192-04

Product Brand: Viewcast Osprey
Product Condition: Used
Excluding VAT: £76.00
Including VAT: £91.20
Information

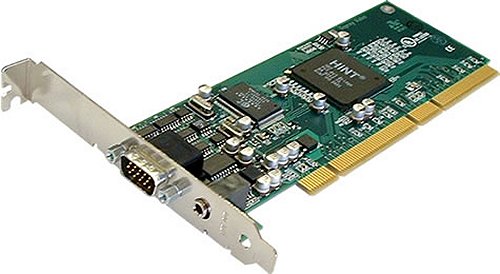

Osprey 230 Video Capture Card
In good condition and full working order

CARD ONLY - NO OTHER CABLES OR SOFTWARE INCLUDED

Included:
  • 1 x Viewcast Osprey 230 Video Capture Card 94-00192-04

PCI-X power with analog video capture.

The Osprey 230 analog video capture card offers legendary Osprey® quality and reliability, designed for streaming professionals. It’s the ideal PCI-X™ analog card for broadcast professionals and global OEM systems integrators. With its composite and S-Video inputs and professional balanced audio features, it’s the card of choice for high quality, reliable video capture.

Industry proven performance.

More than 400K Osprey cards are being used globally in a variety of broadcast, commercial and industrial applications. You’ll find Osprey cards in mission-critical applications throughout the world.

Multiple streams per input.

Purchase the Osprey 230 with SimulStream® and you can feed audio and video to multiple encoders at the same time. Or, create multiple streams of the same type with completely independent settings for sizing, scaling, logos and bit rate.

Software compatible.

The Osprey 230 works with popular video capture and encoding applications to provide maximum flexibility in meeting the requirements of your unique application.
Specifications
Driver Support:
  • Microsoft® DirectShow® API
  • Linux support is built into the modern Linux kernels
Video Inputs:
  • One channel switchable input: Composite (BNC x 1), S-Video (mini-DIN)
Audio Inputs:
  • Balanced stereo (XLR x 2)
  • Unbalanced stereo (RCA x 2)
Audio Outputs:
  • Unbalanced stereo line (3.5 mm)
Video Format:
  • NTSC/PAL
Pre-Processing:
  • Closed-caption extraction/rendering
  • Software-adjustable hardware audio gain control
  • Logo/bitmap overlay
  • Scaling, cropping, de-interlacing and inverse telecine
  • Loss of video automatic test pattern generation with text overlay option
Dimensions:
  • Half-height / half-length board
  • 6.60" L x 2.71"H (16.77 cm L x 6.87 cm H)
  • 64-bit PCI™ interface
  • 32-bit/33-MHz PCI compatible
  • 3.3 V PCI 2.3 compliant
System Requirements:
  • Multi-core processors are recommended to run video applications.
