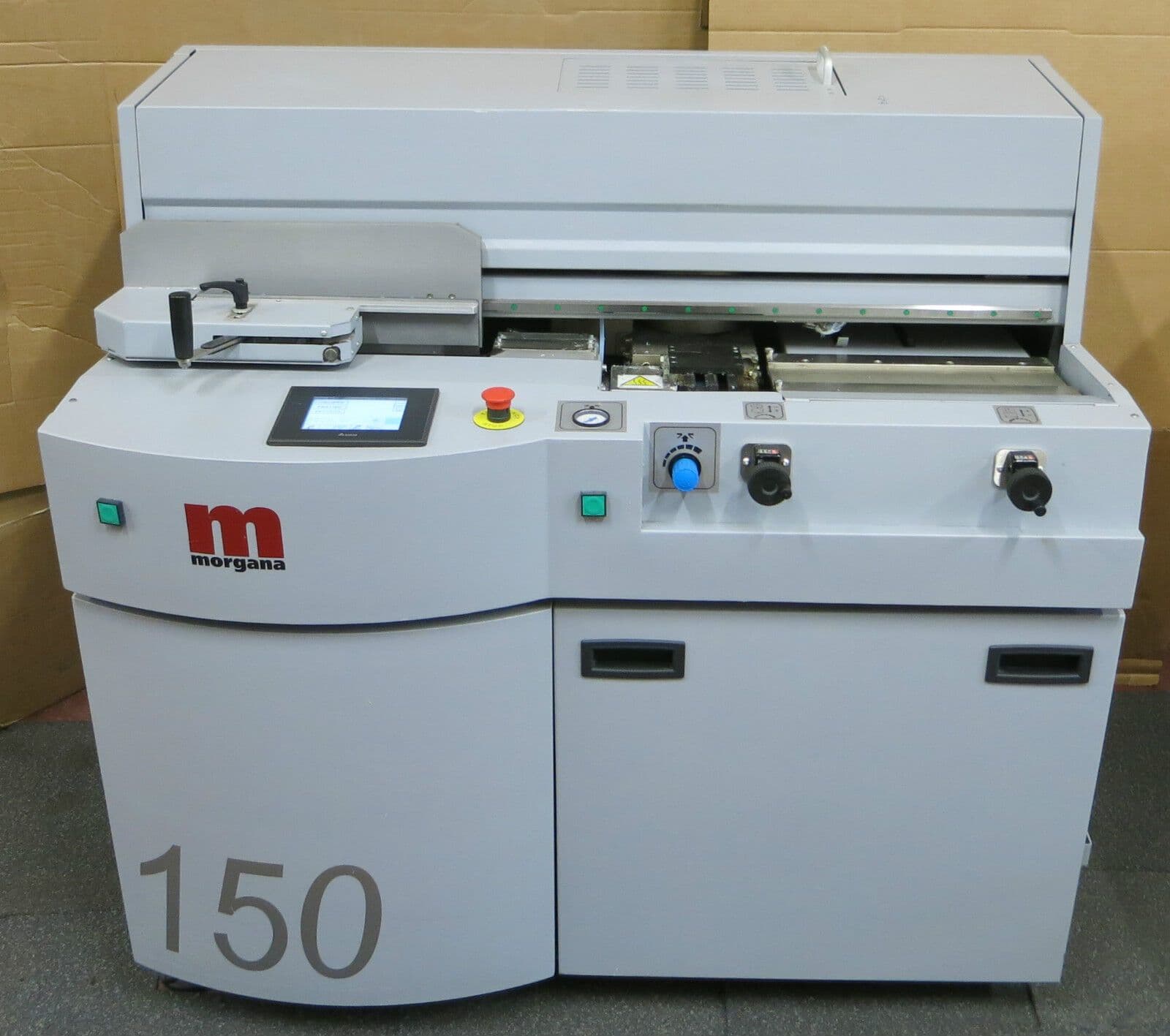

Morgana DigiBook 150 PUR Binding Machine Binder Booklet Maker Making System
In Very Good Condition
Tested and In Full Working Order - purchased new in 2013
- 1 x Morgana Digibook 150 PUR Binding Machine Binder Booklet Maker Making System
Description
PUR is the strongest, most flexible binding adhesive available and
offers several additional advantages over other binding adhesives.
When inks, coatings or digital print toners are present in the spine
area these can compromise the strength of typical hotmelt perfect
binding. PUR is resistant to this and will form a super-strong bond with
all weights and finishes of paper stocks. In addition PUR works well
with synthetic and recycled-content stock.
The DigiBook 150 is an entry level PUR binder and is ideally suited to
traditional and digital printers who require short runs of PUR perfect
bound books to a professional standard. The DigiBook 150 is equipped
with a patented closed gluing system where the spine and side gluing is
applied by a slot applicator for the utmost binding quality and accuracy.
Key product features:
- 150 cycles per hour
- Touch screen operation
- Binding length (spine) from 110mm up to 380mm
- Spine thickness from 1 to 50 mm
- Spine preparation by sophisticated notching device
- Paper chip extractor
- Patented hermetically sealed PUR application system for spine
- and side gluing with automatic glue cut-off
- Automatic cleaning and sealing of the glue head
The machine is easy to use, even by non-specialised personnel, and
operated via a touch screen panel with icon graphics that allow the
programming of all precision operations in just a few seconds.
An additional feature of the DigiBook 150 is the new and innovative glue
application system which is covered by no less than seven international
patents. The application is direct and hermetically sealed, without
odour or toxic fume emissions, and does not require extraction fans. It
is possible to set different temperatures for the glue melting tank and
the applicator giving greater flexibility and glue life. Another feature of
this applicator is it can be cleaned and sealed automatically from the
touch screen allowing for minimum glue wastage.
The PUR glue is applied on the book spine and on the sides by
independent glue slots, each of which can be adjusted to give the best
possible spine and side glue results. The quantity is determined by the
height of the applicator and the pressure applied, thus allowing any
kind of book to be bound with maximum ease.
Specification:
- Cycles per hour: Up to 150
- Number of clamps: 1
- Touch screen: Yes
- Maximum book size: 380mm x 320mm
- Minimum book size: 120mm x 110mm
- Milling width: 3mm
- Block/spine thickness: 1 - 50mm
- Cover dimension maximum: 700mm x 380mm
- Cover dimension minimum: 222mm x 120mm
- Maximum cover weight: 400 gsm
- Dimensions: L 1400mm x W 800mm x H 1270mm
- PUR glue tank capacity: Up to 3kg
- Machine weight: 400kg (gross) - 250kg (net)
- Power requirement: 220v, 13 amp
CS 134825
Software Version PLC: 1.3.0
Software Version HMI: 1.6.0
|
