HP MSA60 Modular Smart Array 2U 12x 3.5" Bay + 1x SAS I/O Module 399049-001

mpn: 418408-B21 MSA60
product brand: HP
product condition: Used
excluding vat: £95.00
including vat: £114.00

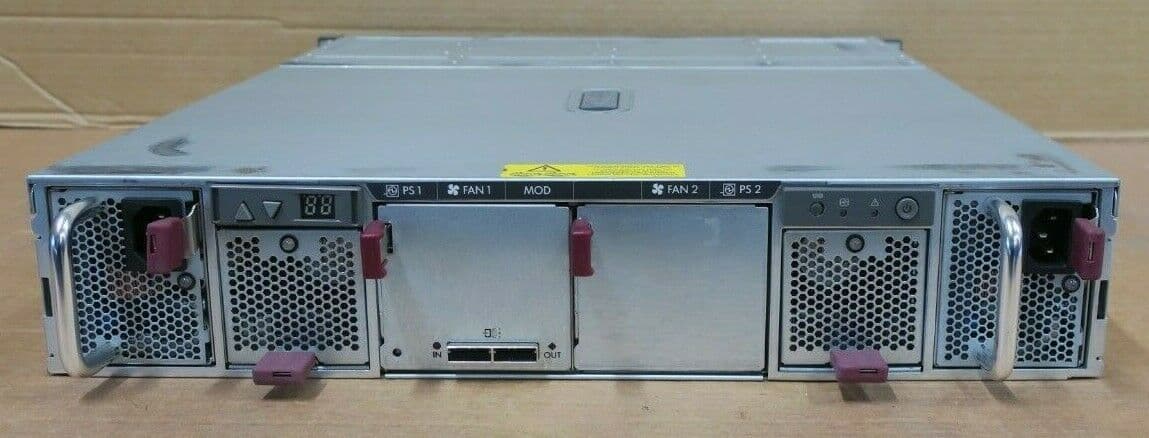

HP MSA60 Modular Smart Array 2U 12x 3.5" Bay + 1x SAS I/O Module 399049-001
Model No: MSA60
P/N: 418408-B21
In Good Condition
In Full Working Order
  • 1 x HP MSA60 Modular Smart Array 2U 12x 3.5" Bay 418408-B21
  • 1 x SAS I/O Control Module 399049-001
  • 2 x 575W Power Supply 405914-001
The HP StorageWorks 60 Modular Smart Array enclosure is a 2U Serial Attach SCSI (SAS) disk drive storage enclosure supporting 3.5" SAS or Serial ATA (SATA) drives. This enclosure delivers industry-leading data performance, availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. This enclosure is designed to support 3.5" Universal SAS or SATA hard drive form factors. The MSA60 enclosure supports direct attach storage (DAS) to HP ProLiant Servers. The MSA60 supports the cascading of shelves in a 1+3 configuration to allow a maximum of 48 drives in an 8U configuration behind each port on the Smart Array P800 controller for a total of 96 drives in 8 enclosures. (this single controller port incorporates four lanes for a total max throughput of 12Gb/s for SAS)
  • 2U rackmount form factor
  • SAS host interface
  • Supports twelve 3.5" hot pluggable drives
  • Ability to support 36GB, 72GB ,146GB & 300GB 3.5" 3Gb/s SAS drives
  • Ability to support 250GB & 500GB 3.5" 1.5Gb/s SATA drives
  • Modular design
  • 1+3 Cascade support (behind a single SAS port)
  • SATA 1.5Gb/s - Delivering data transfer rates greater than 100MB/s
  • Provides storage capacity of up to 6TB per enclosure (using 500GB 1" SATA disk drives)
  • Hot pluggable disk drives, power supplies, and fans
  • Redundant fans and power supplies ship as standard equipment with base enclosure
  • Each MSA60 enclosure comes with dual power supplies that are sufficient to provide power to the
  • enclosure and maintain normal operating levels
  • Integrated Environmental Monitoring - Monitors environmental conditions within the enclosure and components such as the power supply, fans and temperature
  • Easy removal of parts provides better serviceability. No tools are required!
  • Supports MS Windows 2003, Red Hat Linux, SUSE Linux, Novell NetWare
  • Supported with Smart Array P800 SAS controller
  • Supported with ACU, ORCA and HP Systems Insight Manager through configuration utilities provided via the Smart Array controller
purchasers in the EU (excluding UK) who are VAT registered
CS 226668 226669 226670
  • MPN:
    418408-B21 MSA60
