Dell EqualLogic PS6100e Virtualized iSCSI SAN Storage Array 24 x 1TB = 24TB HDD

Product Brand: Dell EqualLogic
Product Condition: Used
Excluding VAT: £1,315.75
Including VAT: £1,578.90
Information

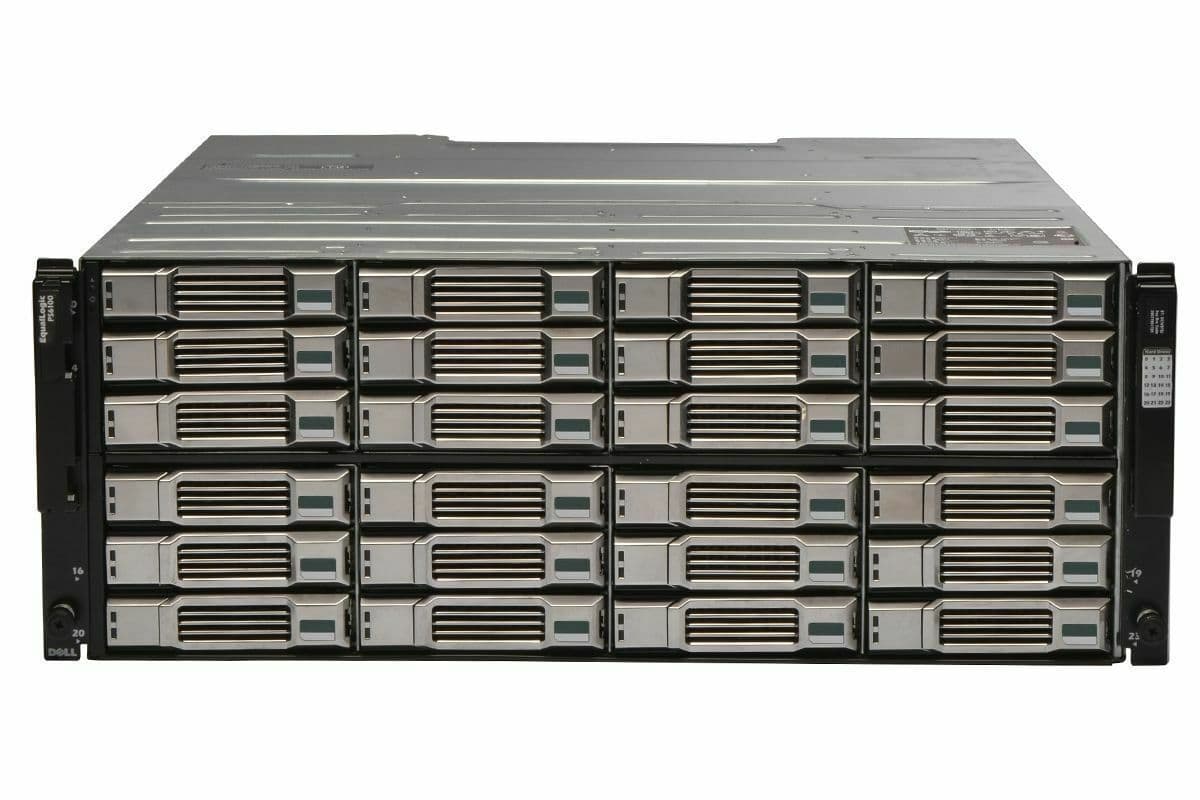

Dell EqualLogic PS6100E Virtualized iSCSI SAN Storage Array

With 24 x 1TB 7.2k SAS = 24TB STORAGE


In Good Condition, Full Working Order

Tested

2 Years Warranty

Includes:

  • 1 x Dell EqualLogic PS6100E Virtualized iSCSI SAN Storage Array

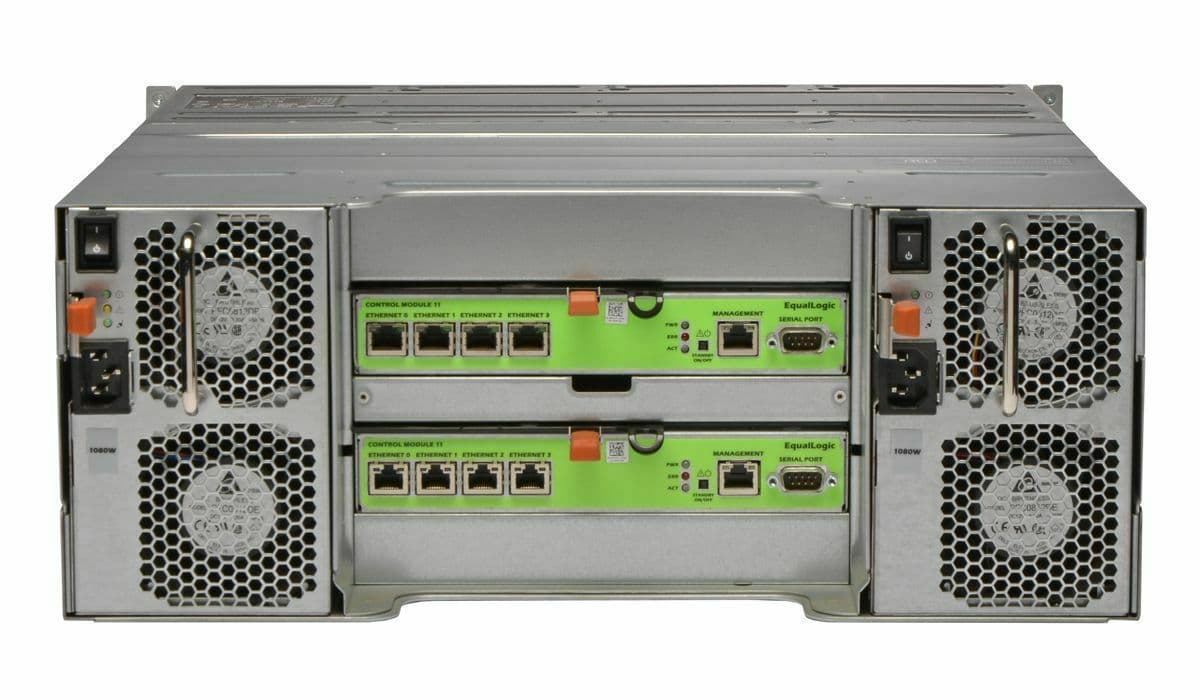

  • 2 x Control Module 11
Each With:
4 x 1000BASE-T Network Interface Ports
1 x 100Base-TX Dedicated Management Port
4Gb Non-volatile Memory
Support For RAID 5,6,10 And 50

  • 24 x 1TB 7.2k 6Gbps SAS 3.5" Hard Drives
  • 2 x Redundant Power Supplies

Built to make storage simple

Master your data-hungry tasks with EqualLogic PS6100E—high-capacity performance with easy, flexible management for highly consolidated mid-tier storage environments.

Designed to scale with your business

Fulfill your high-capacity needs with the PS6100E GbE internet SCSI (iSCSI) array, a Dell™ Fluid Data™ solution with a virtualized scale-out architecture that delivers enhanced storage performance and reliability that is easy to manage.

  • Help eliminate downtime and performance penalties with smooth, incremental SAN expansion.
  • Grow your virtual storage alongside your virtual server growth.
  • Change hardware without disruption.
  • Add or remove arrays at will, according to policy, age, application or business needs.
  • Easily mix new disk or network technologies in the SAN.
  • Move volumes (databases/VMs) online between any pool or disk resources.
  • Avoid forklift upgrades or data-in-place migrations that cost time and money.
  • Automatically balance loads across disks and multiple arrays in a pool.
  • Help eliminate manual redistributing of capacity or application workloads (downtime and services costs).

Choose your array

Build capacity for your data center using PS6100E arrays. With 24 NL-SAS 3.5" HDDs and up to 96 terabytes of capacity in a 4U chassis, the PS6100E combines maximized capacity and optimized scalability with simple, flexible management.

The PS6100 Series family features:

  • Dual controllers designed for built-in redundancy
  • Four GbE ports per controller
  • Dedicated 10/100 management port per controller
  • 6G SAS backplane
  • Options for 12 or 24 hot-swappable drives
  • 3.5" 7,200 rpm NL-SAS drives available in 1TB, 2TB, 3TB or 4TB
  • Cache-to-flash memory de-staging
  • Peer-scaling architecture that scales performance linearly
  • Vertical Port Failover, designed to enable you to maintain full bandwidth if a networking port fails
  • Group Manager, which integrates all management into one console for both file- and block-storage protocols
  • Array firmware and host software with no additional licenses or fees
  • Enhanced security with self-encrypting drives (SED)


Grow confidently with advanced Array Software features

Meet your current storage needs and future data management requirements with EqualLogic™ Array Software.

  • Synchronous Replication: Maintain two identical copies of a volume across two different storage pools in the same PS Series for real-time data protection.
  • Volume Unmap: Recover unused space previously allocated to thin-provisioned volumes for better storage capacity utilization and cost-effectiveness.
  • Snapshot Space Borrowing: Temporarily increase the available snapshot space for a volume by borrowing from the snapshot reserve of other volumes and pool-free space, improving your capacity management.

Specifications:

Storage Controllers
  • Dual controllers, each with 4GB memory for PS-series firmware. Each controller provides cache to flash for data protection.
Hard Disk Drives
  • Twenty-four (24) NL-SAS hot-pluggable hard disk drives
Drive Capacities
  • 3.5" 2Tb 7,200 RPM NL-SAS drives
System Capacities
  • 48 Tb using twenty-four (24) 2 Tb NL-SAS disk drives

Technical Highlights

Volumes
  • Up to 1,024
Snapshots
  • 512 per volume / up to 10,000 total per group
Volume Connections
  • Up to 1,024
Host Protocol
  • Any standards-compliant iSCSI initiator
Operating Systems Supported
  • Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows Server® 2008 R2 including Hyper-V™, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux® Enterprise, Sun™ Solaris™, IBM® AIX®, HP-UX, Mac OS® X, VMware® ESX Server 3 / 3.5 / 4 / 4.1 / 5, ESXi 3.5 / 4 / 4.1 / 5, Citrix® XenServer™, Novell® NetWare®
RAID Support
  • RAID 5, RAID 6, RAID 10, and RAID 50
Network Interfaces
  • Four (4) copper per controller + One (1) dedicated management port
TCP Network Support
  • IPv4, IPv6 core support
Expansion Option
  • Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. Up to 16 total members per group

Reliability

  • Vertical port sharing
  • Redundant, hot-swappable controllers; power supplies / cooling fans, and hot-swappable disks
  • Individual disk drive slot power control
  • Cache-to-flash

Enclosure Monitoring System

  • Automatic spare configuration and utilization
  • SMART
  • Automatic bad block replacement
  • Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives

Management

  • SAN Headquarters multi-group performance and event monitoring tool
  • Serial console
  • Ability to configure a separate management network
  • SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
  • Multi-administrator support

Security

  • CHAP authentication
  • Access control for iSCSI
  • Access control for management interfaces including Active Directory, LDAP, or RADIUS support

Notification Methods

  • SNMP traps, e-mail, syslog

Power

  • AC voltage: 100-240 VAC ±10% single phase 1080W (max, total), +5V up to 155W; +12V up to 924W;+5Vsb up to 10W
  • Frequency: 50/60 Hz
  • Power factor: 0.98 (minimum)
  • Power supplies: Dual 1080 W

Chassis

  • Height: 4U / 175 mm (6.87 inches)
  • Width: 446 mm (17.57 inches)
  • Depth: 580 mm (22.83 inches)
  • Weight: 44.5 kg (97.9 lbs)

Rack Support
  • ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks

Environmental Operating Conditions

  • Temperature range: 5° to 40°C (41° to 104°F)
  • Storage temperature: -40° to 65°C (-40° to 149°F)
  • Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
  • Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation
  • of 10% per hour
  • Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
  • Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
  • Acoustics Category 4: <=7.2 bels at 23C +/- 2C
  • Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985

Regulatory

  • Regulatory Model: E05J
  • Regulatory Type: E05J001


VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED

£1385 excluding VAT


VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE THE European Union (EU) AND by purchasers in the EU (excluding UK) who are VAT registered

DELIVERY IS WITH UPS
