Dell Compellent SC200 33TB SAS 11 x 3TB 2x SC2 EMM Controllers Enclosure 1CJF5

Product Brand: Dell
Product Condition: Refurbished
Excluding VAT: £1,520.00
Including VAT: £1,824.00
Information
Dell Compellent SC200 33TB SAS 11 x 3TB 2x SC2 EMM
Controllers Enclosure 1CJF5
Model No: Compellent SC200
In Good Condition
In Full Working Order

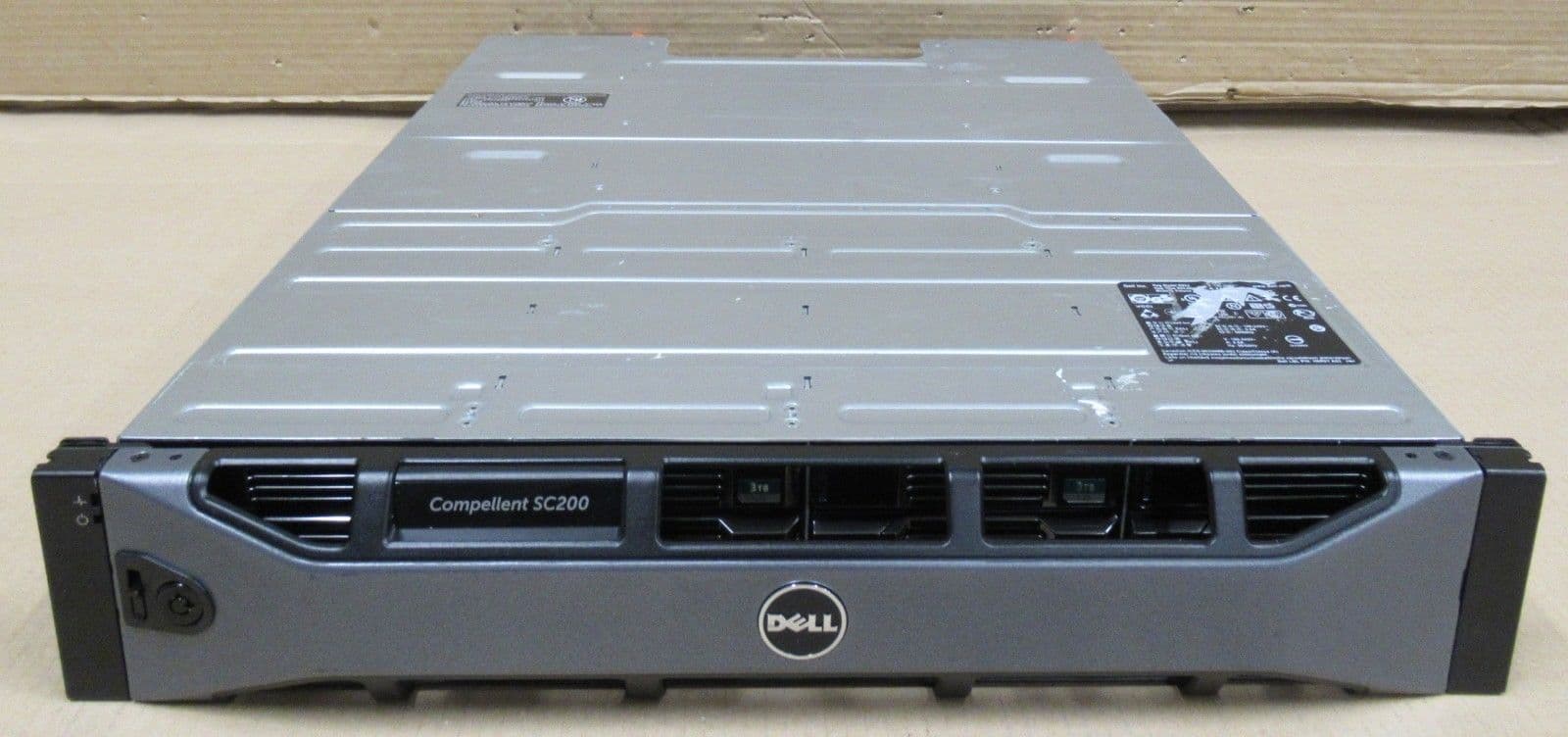

Supplied With Front Bezel
Included
  • 1 x Dell Compellent SC200 Expansion Enclosure
  • 11 x 3TB 3.5" SAS 6GB/s 7.2K HHD - 1CJF5
  • 2 x SAS 6GB/s Management Controller Modules - 0TW47
  • 2 x 700W PSU
Description
Seamlessly scale your Dell Compellent Storage Center capacity with the latest generation SC200 expansion enclosure. Based on Dell hardware, they have the quality, reliability and efficiency you expect from Dell storage enclosures and drives.
  • Choose 3.5" (SC200) HDD options in a 2U chassis with SSD support.
  • Mix drive speeds and capacities within each enclosure.
  • Support up to 960 SAS back-end drives per array.
  • High-speed 6Gbps SAS interface
  • Help lower power requirements with 80 plus Silver certified redundant, hot-swappable 700W power supplies.
  • Protect your data during cooling-system failures with the Fresh Air technology1 within the SC200 enclosure.
  • Help reduce operating expenses with a chiller-less data center environment .
  • Compatible with Dell Compellent SC8000 and Series 40 controllers and require Storage Center 6.2 or greater.
SC200 enclosure
  • A 2U, 6Gb SAS expansion enclosure supporting up to 12x 3.5" drives for flexible capacity that can mix high speed with high capacity drives.
  • Supports 7,200 rpm and 15,000 rpm HDDs plus 200GB2 and 400GB2 SSDs.
  • Provides up to 48TB2 maximum capacity per expansion enclosure.
  • Features dual 6Gb SAS enclosure management modules.
Scalable and efficient expansion for block and file storage
Dell Compellent offers customers an agile, high-performance storage platform that delivers ongoing economic value. With its open, scalable hardware platform, Compellent allows you to intermix the latest industry-standard drive technologies in the same array with the energy-efficient SC200 expansion enclosure. You can also introduce new and emerging technologies over time and on the fly to support your SAN and NAS environments and scale up and out on demand without disruption or downtime.
Scale on a single, modular hardware platform
Easily add capacity to your Dell Compellent Storage Center SAN and NAS environments with flexible and efficient SC200 enclosure that offer performance and capacity options to meet your data center requirements. With Dell Compellent drives and enclosures, your organization can start with any amount of storage capacity and expand over time — from terabytes to nearly 2PB — only replacing components for new technology upgrades. You can easily combine drive and enclosure technologies to build a storage solution that optimizes capacity for maximum efficiency with a minimal footprint. Incorporating new technologies is as simple as plugging in new components. Plus, with the 2U 6Gb SAS SC200 expansion enclosure, you can seamlessly scale your Dell Compellent Storage Center capacity, and build a complete end-to-end Dell hardware solution that can support up to 960 back-end SAS drives per system.
Select the right enclosures for your environment
The SC200 supports a combination of up to 12 hot-pluggable 3.5" SAS HDDs and SSDs, and can yield a total of 48TB raw capacity per enclosure with 4TB drives. The SC220 also supports Flash-optimized solutions using both hard disk drives (HDDs) and solid-state drives (SSDs). Each drive bay within the SC200 can be individually configured for speed and capacity.
Help lower power requirements with redundant, hot-swappable 80 PLUS Silver-certified power supplies, and better protect your data with the cost-efficient Fresh Air technology supported by the SC200 enclosure.
Flexible drive options for storage expansion
With Compellent, you can intermix SAS and Fibre Channel HDDs, and SSDs including multi-level cell (MLC) and single-level cell (SLC) SSDs in the same array. Simply choose the drive types, capacities, form factors, transfer rates and rotational speeds that best meet your business and application needs. You can always add more capacity on the fly to accommodate changing business requirements. The system adjusts automatically, restriping data across all drives in the array.
With Compellent, you can intermix SAS and Fibre Channel HDDs, and SSDs including multi-level cell (MLC) and single-level cell (SLC) SSDs in the same array. Simply choose the drive types, capacities, form factors, transfer rates and rotational speeds that best meet your business and application needs. You can always add more capacity on the fly to accommodate changing business requirements. The system adjusts automatically, restriping data across all drives in the array.

Specifications
Technical Highlights
Expansion Enclosure Interface Speed:
6 Gb/s SAS
Drive Support:
SAS
Intermixed Drive Capacities Yes
Max Number of Drives per Enclosure SC200: 12
Max Number of Drives per Array 960
Redundant and Hot-swappable Power Supplies Yes
Chassis
Scalability SC200: Each 3.5" SAS enclosure holds up to 12 SAS drives.
Capacity SC200: 48T per 2U
Height 8.7cm (3.43 inches)
Width 48.2cm (18.98 inches)
Depth SC200: 59.4cm (23.39 inches)
Weight SC200: 28.39 kg (62.6 lb) (maximum configuration)
8.84 kg (19.5 lb) (empty)
Wattage 700W (Power Supply Rating), 450W maximum draw
Heat Dissipation SC200: 2,389 BTU/hr (at 700W)
1,536 BTU/hr Max
Voltage 100-240 VAC, auto sensing
Frequency 50/60 Hz
Amperage 8.6 A at 100 V, 4.3 A at 240 V

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE THE European Union (EU) AND by
purchasers in the EU (excluding UK) who are VAT registered
