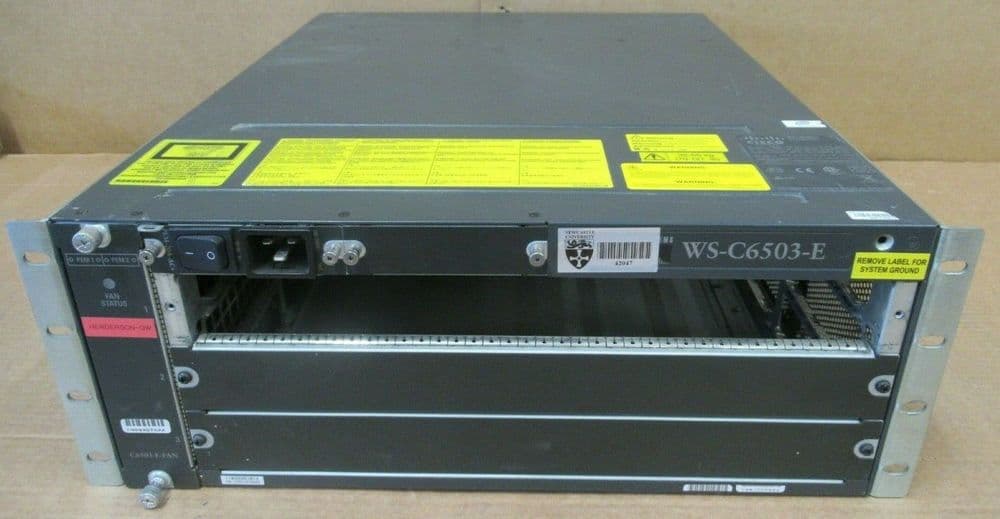

Cisco Catalyst 6500 Series WS-C6503-E 3-Slot Chassis + PWR-1400-AC

Product Brand: Cisco
Product Condition: Used
Excluding VAT: £152.00
Including VAT: £182.40
Information
Cisco Catalyst 6500 Series WS-C6503-E 3-Slot Chassis + PWR-1400-AC
Model No: WS-C6503-E
In Good Condition
In Full Working Order
Rack Mount Ears Included
Specification

WS-C6503-E Specification

WS-6503-E Specification

Number of Slots

3

Supervisor Compatibility

Cisco Catalyst 6500 Series Supervisor Engine 32

Cisco Catalyst 6500 Series Supervisor Engine 720-3B

Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL

Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C

Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL

Cisco Catalyst 6500 Series Supervisor Engine 2T

Power Supply Compatibility

* Indicates EoS Power Supply

AC: 1400W, 950W*

DC: 950W*

Module Compatibility

All modules based on the software release in the system

With Supervisor Engine 32

  • 12.2(18)SXF

With Supervisor Engine 720

  • 12.2(14)SX

With Supervisor Engine 720-10 GE

  • 12.2(33)SXH

With Supervisor Engine 2T-10 GE

  • 15.0(1)SY

Reliability and Availability

Calculated Mean Time Between Failure (MTBF)

860,868

Inches

7 x 17.37 x 21.75

Centimeters

17.8 x 44.1 x 55.2

Rack Units (RU)

4

Chassis Only (lbs)

33

Fully Configured (lbs)

85.4

Input Voltage

100 to 240 VAC

-48 to -60 VDC

Safety

UL 60950 Second Edition

CAN/CSA-C22.2 No. 60950 Second Edition

EN 60950 Second Edition

IEC 60950 Second Edition

AS/NZS 60950

EMC

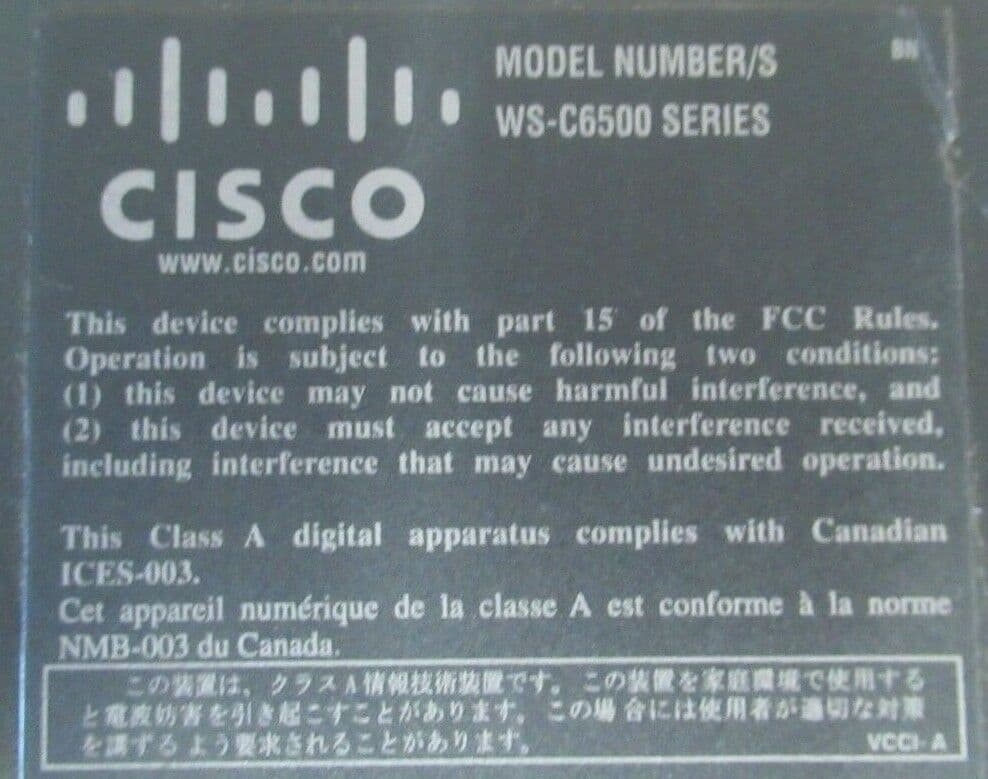

FCC Part 15 (CFR 47) Class A

VCCI Class A

EN55022 Class A

CISPR 22 Class A

CE marking

AS/NZS 3548 Class A

ETS300 386

EN55024

EN61000-6-1

EN50082-1

NEBS/ETSI

GR-1089-Core NEBS Level 3

ETS 300 019 Storage Class 1.1

ETS 300 019 Transportation Class 2.3

ETS 300 019 Stationary Use Class 3.1

ATIS Pb free and Energy Efficiency

ATIS-0600020.2010 Pb Free circuit packs

ATIS-0600015-2009 General Energy Efficiency Requirements (TEER)

ATIS-0600015.03-2009 Switch and Router Energy Efficiency

ATIS-0600015.01-2009 Server Energy Efficiency

VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)

Operating Temperature

32°F to 104°F (0 to 40°C)

Storage Temperature

-4 to 149°F (-20 to 65°C)

Thermal Transition

0.5°C per minute (hot to cold)

  1. 33°C per minute (cold to hot)

Relative Humidity

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Operating Altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE THE European Union (EU) AND
by purchasers in the EU (excluding UK) who are VAT registered
JB - 220261,220262
