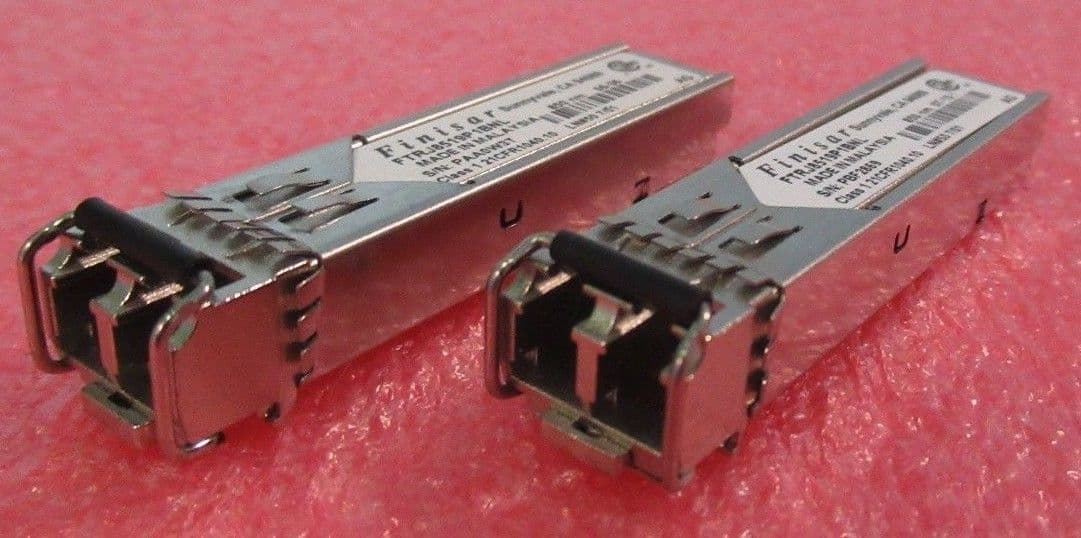

2 x Finisar FTRJ8519P1BNL Fiber Optic Transceiver GBIC
850nm 2GB Shortwave SFP
Model No: FTRJ8519P1BNL
In Good Condition
In Full Working Order
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
Includes:
- 2 x Finisar FTRJ8519P1BNL Fiber Optic Transceiver GBIC 850nm 2GB Shortwave SFP
Specification
- Fiber Optic Device Type: TRANSCEIVER
- Emitter/Detector Type: LASER
- Fiber Type: 50/125, MMF, 62.5/125, SMF
- Body Breadth: 13.72 mm
- Body Height: 12.43 mm
- Body Length or Diameter: 56.64 mm
- Communication Standard: GBE, OC-3; OC-48
- Connection Type: LC CONNECTOR
- Data Rate (Rx): 2125.0 Mbps
- Data Rate (Tx): 2125.0 Mbps
- Mounting Feature: PANEL MOUNT
- Operating Temperature-Min: -20.0 Cel
- Operating Temperature-Max: 90.0 Cel
- Operating Wavelength-Nom: 845.0 nm
- Operating Wavelength-Min: 830.0 nm
- Operating Wavelength-Max: 860.0 nm
- Optical Power Output-Nom: 0.4466 mW
- Return Loss-Min: 12.0 dB
- Sensitivity: -18.0 dBm
- Sub Category: Fiber Optic Transceivers
- Supply Voltage-Nom: 3.3 V
- Supply Voltage-Min: 3.0 V
- Supply Voltage-Max: 3.6 V
TH 189590
specifications
-
MPN:FTRJ8519P1BNL
